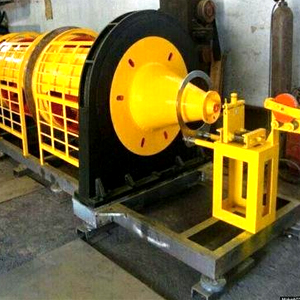

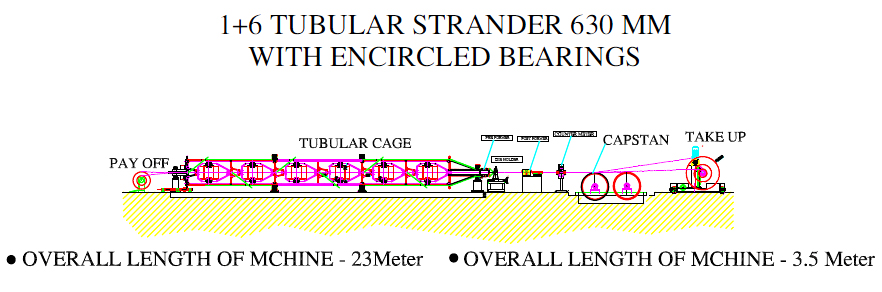

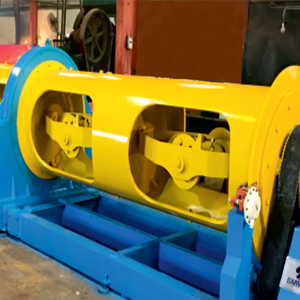

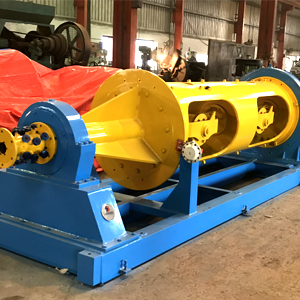

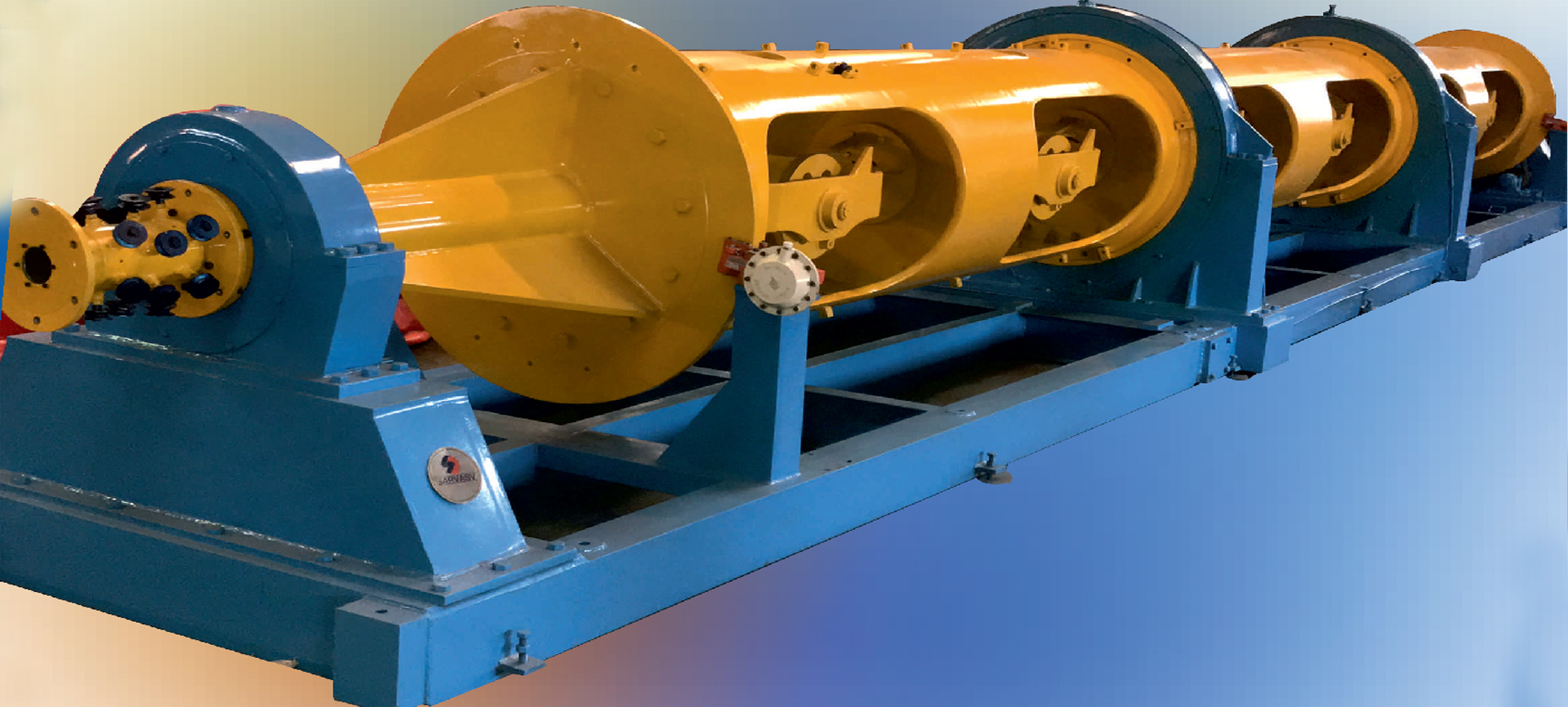

This Strander is used for making 7 or 19 Wire Strands of round, sector, compact conductor to be used in Cable Industry or for Over Head Conductors. For Wire Rope Industry we offer 6, 12, 18, 24, 36 Bay Configurations. All Tubular Stranders are with Big Encircled Bearings ensuring Higher Speeds and Long Life of the Machine

Rigid rotor running supported by bearings at both ends
Encircled Bearings for Higher Speeds and More Stability of the Machine
Dynamic Balancing
Intermediate Encircled Bearings for Long Machines
High efficiency and speed
Line drive by A.C. motors with electronic or mechanical synchronization between line components
Centralized lubricating system

Disk type Pneumatic brake for Rotor designed for high speed stopping
HMI /PLC Equipped
Easy Lay Setting
Ergonomically designed Operator Control Station
Range of Takeups and Payoffs available
Wire Straightening Assembly and Pre Forming Heads

Model	Wire Dia	Max Rotor Speed (Rpm)	Driven Motors (Kw)
SMEPL/TS/7/500	1-5 mm	600	30
SMEPL/TS/7/560	1-5 mm	600	30
SMEPL/TS/7/630/EB	1-5 mm	500	60
SMEPL/TS/12/630/EB	1-5mm	300	75

Note :
Since the Machines undergoes continues changes we reserve the right to modify the details These Machine are Manufactured in Various Bobbin Size as Per DIN Stand.
